Diverter Valve

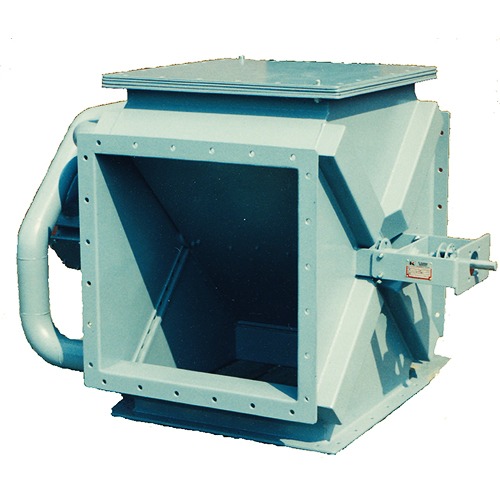

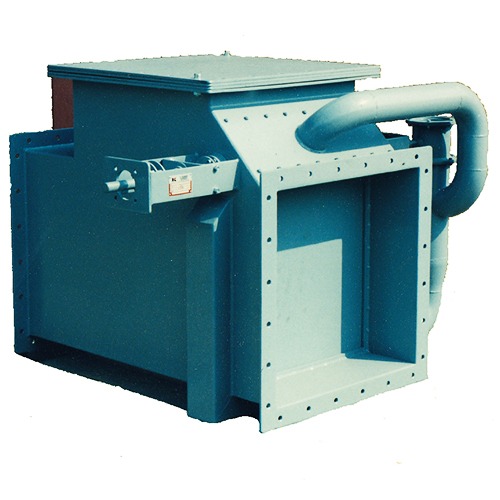

- The TFS valve is a 3/2-way diverter valve in a square design with air barrier.
- The KFS valve is a 4/2-way diverter valve in a square design with air barrier.
- The valve is made with double-walled damper blade with built in barrier air channels.
- With the barrier air at slightly higher pressure than the duct pressure, a sealing efficiency of 100% is ensured.
- Constructed as the SKS/TF type.
- Material: regular steel, Corten steel, heat and acid resistant as well as stainless steel.
- Operation: Can be delivered with manual operation, pneumatic or electrical drive, box with end stop switches or positions with 4-20 mA feedback signal for regulation purposes.
Diverter Valve

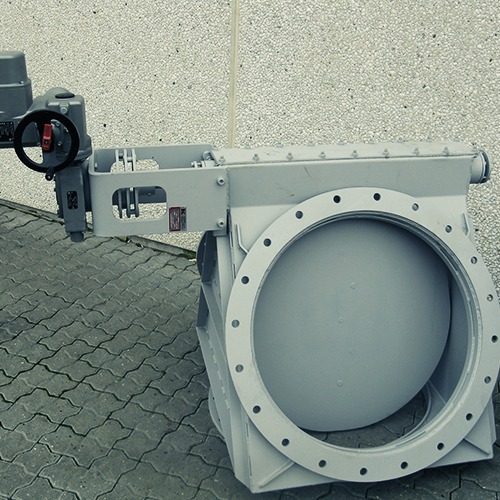

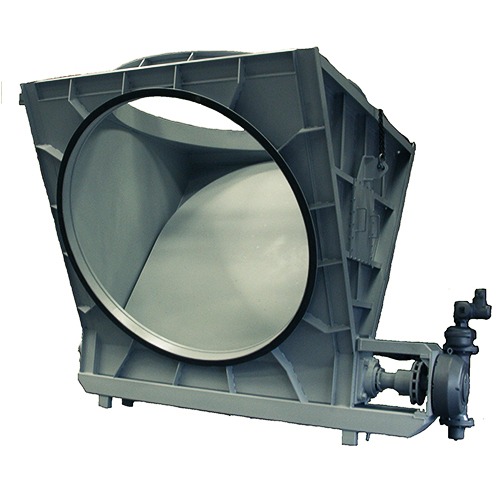

- The SKS/TF valve is a 3/2-way diverter valve in a square design.
- The SKS/TF valves are designed for installation at duct branches or in bypass systems in connection with heat exchangers or similar.
- The SKS/TF valves are designed for flange mounting on all branches. The sturdy and strong construction ensures a flawless function and long life, as well as the possibility to be dismantled in case of repair or inspection.
- The damper blade is made as a “wing profile” with smooth outer surfaces giving minimal flow resistance and high strength.
- The damper plate shaft is suspended in heat resistant special bearings and is fitted with separate shaft seals where it passes through the housing.
- The valve can be delivered with different types of seals between the valve shaft and housing.
- Material: regular steel, Corten steel, heat and acid resistant as well as stainless steel.
- Operation: Can be delivered with manual operation, pneumatic or electrical drive, box with limit switches or positions with 4-20 mA feedback signal for regulation purposes.
DiVERTER Valve
- The TF-3 valve is a 3/2-way diverter valve designed for round ducts.
- The TF-3 valve is designed for installation at duct branches or in bypass systems in connection with heat exchangers or similar.
- The SKS/TF valve is designed for flange mounting on all branches. The sturdy and strong construction ensures a flawless function and long life, as well as the possibility to be dismantled in case of repair or inspection.
- The damper blade is made as a “wing profile” with smooth outer surfaces giving minimal flow resistance and high strength.
- The damper plate shaft is suspended in heat resistant special bearings and is fitted with separate shaft seals where it passes through the housing or by a combined bearing and shaft sealing.
- The valve is delivered with different types of seals between the valve shaft and housing.
- Material: regular steel, Corten steel, heat and acid resistant as well as stainless steel.
- Operation: Can be delivered with manual operation, pneumatic or electrical drive, box with limit switches or positions with 4-20 mA feedback signal for regulation purposes.
